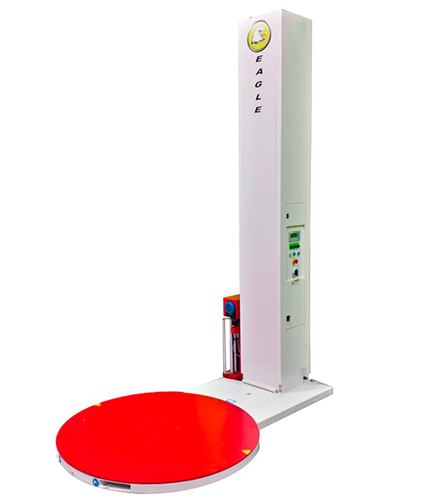

Semi-Automatic Pallet Wrap Machine 5000# Max
Semi-Automatic Pallet Wrap Machine 5000# Max



Alternative Views:


Product Code: 1-2000BE
Contact us for more information (956) 687-7695

Description

The Eagle 2000 series stretch wrappers feature a powered film carriage unit to maximize film efficiency. First a photoelectric sensor automatically recognizes the load height. Then the carriage travel will automatically adjust to create an effective wrap cycle. Additionally the turntable offers a soft start/soft stop feature for gentle handling. Thereupon completion of a job cycle, the turntable resets itself automatically. Therefore this allows for proper orientation of the load for pallet jack or forklift insertion. Even more available features offer increased production and a cost per load savings. Nevertheless, owning an Eagle 2000BE series stretch wrapper just makes work life more efficient.

Features
•Extended Mast
•Semi-automatic or manual operation
•Powered pre-stretch (250%)
•59" Turntable Diameter
•120" Max. Wrap Height
•5,000lb Max Load Weight
•PLC (Programmable Logic Controller)
•LCD display with integrated controls
•ALHS (Automatic Load-Height Sensor)
•Soft start/stop turntable
•Handles pallet load profiles 'A','B', and 'C'

Power: 110VAC/60Hz
Turntable Speed: 0 to 12rpm
Turntable Diameter: 59"
Turntable Height: 3-1/8"
Turntable Diagonal: 80"
Mast Height: 126.5"
Min. Load Height: 22"
Max Load Height: 120"
Stretch Film: 20"
Machine Dimensions: 96.5" x 59" 130"
Eagle 2000B Stretch Wrapper Demonstration
